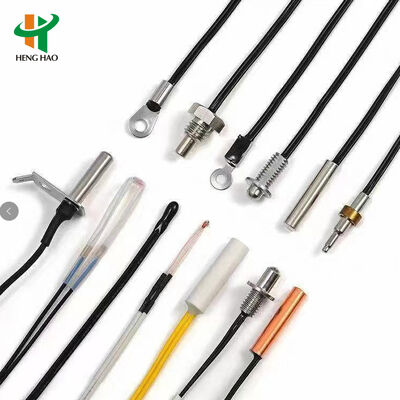

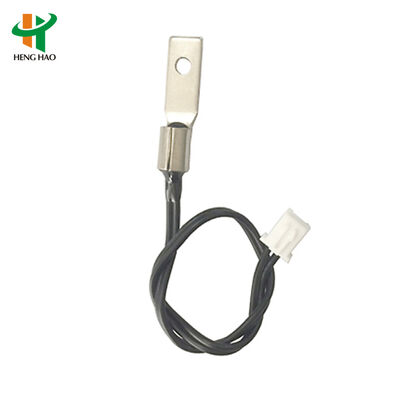

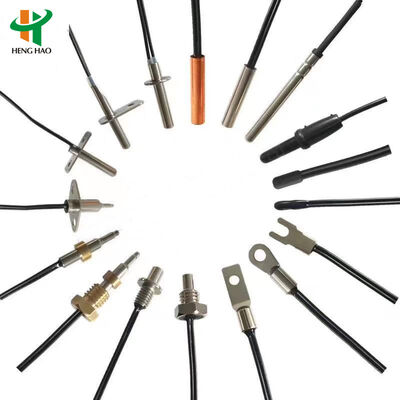

Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple

Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple
Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple

Großes Bild :  Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple

Produktdetails: Zahlung und Versand AGB:
Min Bestellmenge: 1.000
Preis: 0.5
Kontakt

Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple

Beschreibung
Modell Nr.: NTC Kontaktart: Normalerweise geschlossen oder normalerweise offen
Schaltertyp: automatisches Reset oder manuelles Zurücksetzen Spezifikation: 12*16
Nennwiderstand: 5k, 8k, 10k, 15 bis 100k Widerstandsvarianz: ± 1, ± 2, ± 3, ± 5, ± 10
Materialkoeffizient: 2500 ~ 5000k Ableitungs-Koeffizient: ≥0,8 mW/°C
Wärmezeitkonstante: ≤ 25 Sekunden Arbeitstemperatur: -40 °C bis +250 °C
Nennleistung: 50mW Temperaturbereich: -50 bis 500 °C
Genauigkeitsnote: A-Note (0,1), B-Note (0,3), 2B-Note (0,5), 1/3 B-Note (0,1) Wärmezeitkonstante: 0,5s
Schutzniveau: IP68
Hervorheben:

10K NTC thermistor temperature probe

,

50K thermocouple temperature sensor

,

100K NTC thermistor with warranty

NTC Temperature Sensor - Thermistor Temperature Probe (10K, 50K, 100K Thermocouple)
Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple 0 Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple 1 Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple 2
Technical Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K,8K,10K,15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1,±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1,±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw within working temperature
Customization Options

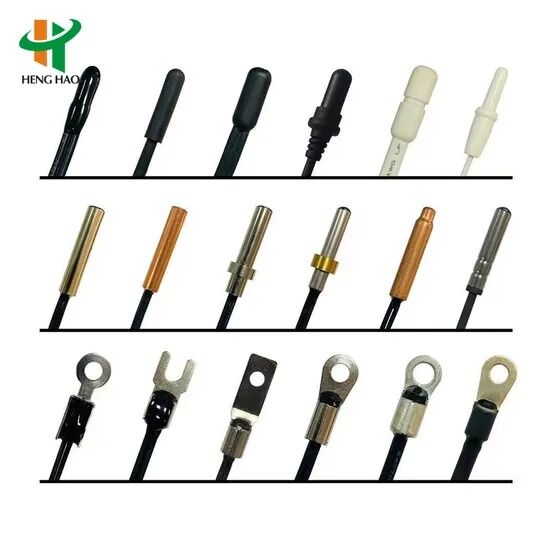

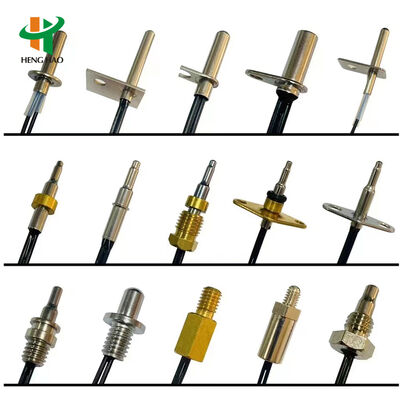

  • Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
  • Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and more, or according to client's request
  • Terminal: Can be riveted according to the requirements of various terminals
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
PT100/PT500/PT1000 Temperature Sensor
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50,PT1000,K,E,J,T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1),B Grade(0.3),2B Grade (0.5),1/3 B Grade(0.1)
Temperature probe 4*30mm, or according to client's request to design.
Thermal time constant 0.5S
Lead wire Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire(-200~200ºC)
Three core high temperature wire(-40~450ºC)
Four fluorine wire (-50~150ºC)
Dia 3mm~16mm
terminal Y type, Pin,XH2.54 or according to client's request.
Level of protection IP68
Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple 3 Temperature Sensor Ntc Thermistor Temperature Probe 10K 50K 100K Thermocouple 4

Größe und Tag:

Thermistor-Temperaturfühler 100K NTC,

negativer Koeffizient-Sensor der Temperatur-100K,

Einzelnes Enden-Glas versiegelte Automobilthermistor
