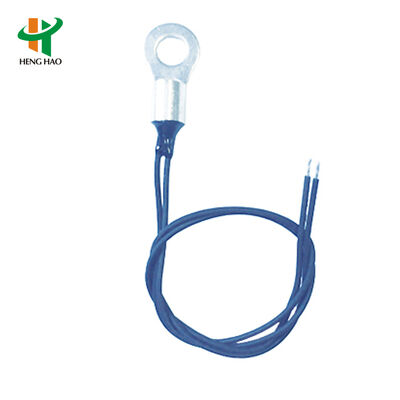

10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor

10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor
10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor 10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor 10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor 10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor 10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor 10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor

Großes Bild :  10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor

Produktdetails:
Zertifizierung: RoHS
Zahlung und Versand AGB:
Min Bestellmenge: 1.000
Preis: 0.5
Kontakt

10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor

Beschreibung
Modell Nr.: NTC Kontakt: Kontaktlos
Ausgangssignal: Thermistor Produktionsprozess: Injektion
Material: Resistives Lithiumchlorid IP-Bewertung: IP65
Kopftyp: Metall- oder Kunststoffrohr B-Wert: 3950K 3435K 3977K PT100
Kontaktart: Normalerweise geschlossen oder normalerweise offen Schaltertyp: automatisches Reset oder manuelles Zurücksetzen
Nennwiderstand: 5k, 8k, 10k, 15 bis 100k Arbeitstemperatur: -40 °C bis +250 °C
Nennleistung: 50mW Wärmezeitkonstante: ≤ 25 Sekunden
Ableitungs-Koeffizient: ≥0,8 mW/°C
Hervorheben:

PT100 temperature sensor probe

,

PT1000 platinum resistor sensor

,

10K NTC thermistor sensor

10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor
NTC Temperature Sensor Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw within working temperature
Customization Options

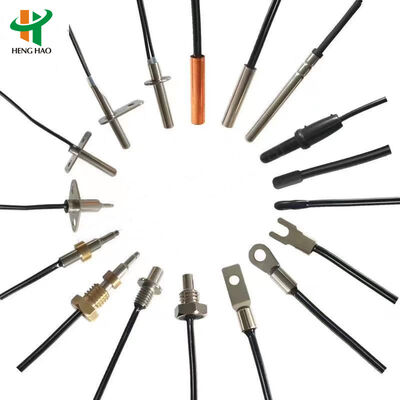

  • Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
  • Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and more, or according to client's request
  • Terminal: Can be riveted according to the requirements of various terminals
PT100/PT500/PT1000 Temperature Sensor Specifications
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50, PT1000, K, E, J, T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe size 4*30mm, or according to client's request to design
Thermal time constant 0.5S
Lead wire options Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire (-200~200ºC)
Three core high temperature wire (-40~450ºC)
Four fluorine wire (-50~150ºC)
Diameter 3mm~16mm
Terminal options Y type, Pin, XH2.54 or according to client's request
Level of protection IP68

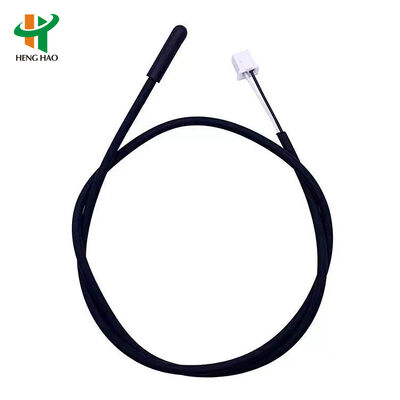

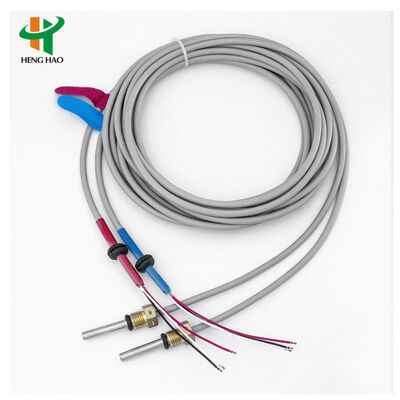

10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor 0 10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor 1 10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor 2 10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor 3
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

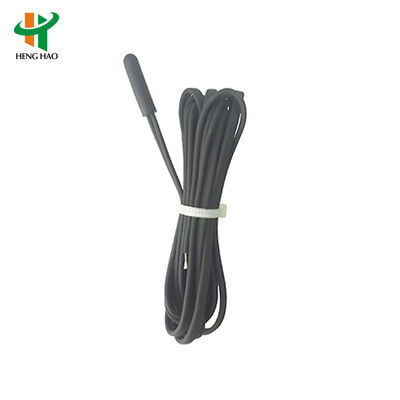

10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor 4 10K 3435K Temperature Sensor PT100 Temperature Probe PT1000 Platinum Resistor 5

Größe und Tag:

Thermistor-Temperaturfühler 100K NTC,

negativer Koeffizient-Sensor der Temperatur-100K,

Einzelnes Enden-Glas versiegelte Automobilthermistor
